Trig TT22 Transponder
Trig's TT22 remote-mount transponder is compact, efficient, and can be controlled directly from FlightView. With the addition of Trig's TN72 WAAS position source the TT22 covers both transponder and ADS-B out requirements.
Bundle Includes:
- Trig TT22 Compact Remote Transponder
- Mounting tray and installation kit
Options:
- Standard length 39" (1m) wiring harness: +$240
- Extended length 118" (3m) wiring harness: +$270
- TN72 WAAS GPS receiver for ADS-B Out: +$530
- TA50 glare shield GPS antenna with 39" (1m) cable: +$105
- TA50 glare shield GPS antenna with 118" (3m) cable: +$110
- TA70 External WAAS GPS Antenna: +$394

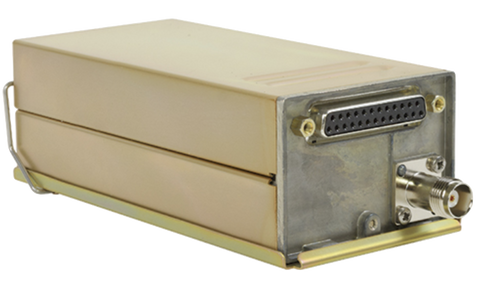

TT22 Transponder
Features:
- Class 1 Mode S and 1090ES ADS-B Out capable
- 250 watts nominal output power
- Certified for IFR / VFR flight
- FAA TSO Certification – TSO-C166b the latest ADS-B standard
- Free FAA ADS-B STC for 576 aircraft types
- Two year warranty from date of install, U.S. based technical support
Includes:
- Transponder unit
- Mounting tray
- User manual
Specifications:
Weight:
0.8 lb
0.8 lb
Dimensions transponder with tray:
1.8 x 2.6 x 6.2 in (48 x 68 x 160 mm)
Type:
Transponder Class 1 Mode S level 2els ADS-B Class B1
1.8 x 2.6 x 6.2 in (48 x 68 x 160 mm)
Type:
Transponder Class 1 Mode S level 2els ADS-B Class B1
FAA 2020 ADS-B airspace compliant capable:
Yes
Supply Voltage:
9 VDC — 33 VDC
Typical consumption (at 14v):
Idle: 0.15A
Active: 0.34 A
Nominal Transmitter Power:
250W @ connector
Operating temperature:
Transponder: -40°C to 70°C
Controller: -25°C to 70°C
Cooling requirement:
No fan required
Certification:
ETSO C88A, C112C, C166A TSO C88b, C112c, C166b, approved for IFR and VFR flight
Compliance:
ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D
Optional TN72 Position Source
Features:
- Simple ADS-B Out upgrade to Trig transponders
- Suitable for experimental, light-sport, and home-built aircraft
- Ideal for experimental gliders — allowing flight in 2020 rule airspace
- Enables live tracking of aircraft with suitable ADS-B In equipment
- Triggers traffic information services (TIS-B only available in U.S.)
- Two year warranty from date of install, U.S. based technical support
Specifications:
Weight:
3.8 oz
3.8 oz
Dimensions:
1.2 x 3.6 x 2.5 in
1.2 x 3.6 x 2.5 in
Type:
TABS GNSS
Supply Voltage:
11 VDC – 33 VDC
Typical Current Consumption:
0.1 amp @ 14 volts
Operating Temperature:
-40°C to 70°C
Connector:
GPS (power, ground and GPS data): DB-9
Antenna:
5-volt phantom power, QMA male
Certification:
TSO-C199 Class B
Compliance:
DO-160G
Optional TA50 Antenna
Features:
- Optimized to be used as a GPS position source
- Lightweight and easy plug-in-play installation
- Weatherproof
- Can be paired with The TN72 GPS receivers from Trig
- Meets FAR 91.227 when used with TN72
- Complete with a secure and reliable QMA connector
Specifications:
Dimensions:
23 x 26 x 12 mm
23 x 26 x 12 mm
Cable Length:
39" (100 cm) or 118 in (300 cm)
39" (100 cm) or 118 in (300 cm)
Frequency:
1575.42 ±3 MHz
Antenna Gain:
>1 dBic
VSWR:
1.5:1
Filtering:
-20 dB, minimum
Noise Figure:
1.5 dB, maximum
Gain:
26 dB
DC Power Requirements:
3 VDC — 5 VDC
Temperature:
-40°C to 85°C
