Complete Trig ADS-B Out + Transponder Bundle
Add full ADS-B Out and transponder capabilities to your experimental or LSA aircraft with this complete 2020 bundle, all controlled directly from FlightView.
Bundle Includes:
- Trig TT22 Compact Remote Transponder
- Trig TN72 2020 Compliant WAAS GPS Position Source
- Trig TA50 Compact WAAS GPS Antenna w/ 39" (1m) cable
- Ready-to-install wiring harness - 39" (1m)
- FlightLink transponder interface cable
Options:
- Extended length 118" (3m) wiring harness: +$35
- TA50 antenna with extended 118" (3m) cable: +$15
- External TA70 WAAS GPS Antenna (Replaces TA50): +$345
TT22 Transponder
Features:
- Class 1 Mode S and 1090ES ADS-B Out capable
- 250 watts nominal output power
- Certified for IFR / VFR flight
- FAA TSO Certification – TSO-C166b the latest ADS-B standard
- Free FAA ADS-B STC for 576 aircraft types
- Two year warranty from date of install, U.S. based technical support
Includes:
- Transponder unit
- Mounting tray
- User manual
Specifications:
Weight:
0.8 lb
0.8 lb
Dimensions transponder with tray:
1.8 x 2.6 x 6.2 in (48 x 68 x 160 mm)
Type:
Transponder Class 1 Mode S level 2els ADS-B Class B1
1.8 x 2.6 x 6.2 in (48 x 68 x 160 mm)
Type:
Transponder Class 1 Mode S level 2els ADS-B Class B1
FAA 2020 ADS-B airspace compliant capable:
Yes
Supply Voltage:
9 VDC — 33 VDC
Typical consumption (at 14v):
Idle: 0.15A
Active: 0.34 A
Nominal Transmitter Power:
250W @ connector
Operating temperature:
Transponder: -40°C to 70°C
Controller: -25°C to 70°C
Cooling requirement:
No fan required
Certification:
ETSO C88A, C112C, C166A TSO C88b, C112c, C166b, approved for IFR and VFR flight
Compliance:
ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D

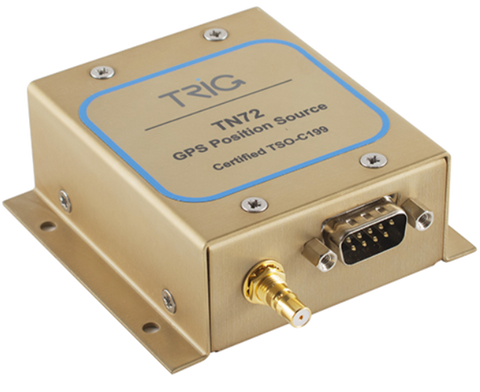

TN72 Position Source
Features:
- Simple ADS-B Out upgrade to Trig transponders
- Suitable for experimental, light-sport, and home-built aircraft
- Ideal for experimental gliders — allowing flight in 2020 rule airspace
- Enables live tracking of aircraft with suitable ADS-B In equipment
- Triggers traffic information services (TIS-B only available in U.S.)
- Two year warranty from date of install, U.S. based technical support
Specifications:
Weight:
3.8 oz
3.8 oz
Dimensions:
1.2 x 3.6 x 2.5 in
1.2 x 3.6 x 2.5 in
Type:
TABS GNSS
Supply Voltage:
11 VDC – 33 VDC
Typical Current Consumption:
0.1 amp @ 14 volts
Operating Temperature:
-40°C to 70°C
Connector:
GPS (power, ground and GPS data): DB-9
Antenna:
5-volt phantom power, QMA male
Certification:
TSO-C199 Class B
Compliance:
DO-160G
TA50 Antenna
Features:
- Optimized to be used as a GPS position source
- Lightweight and easy plug-in-play installation
- Weatherproof
- Can be paired with The TN72 GPS receivers from Trig
- Meets FAR 91.227 when used with TN72
- Complete with a secure and reliable QMA connector
Specifications:
Dimensions:
23 x 26 x 12 mm
23 x 26 x 12 mm
Cable Length:
39" (100 cm) or 118 in (300 cm)
39" (100 cm) or 118 in (300 cm)
Frequency:
1575.42 ±3 MHz
Antenna Gain:
>1 dBic
VSWR:
1.5:1
Filtering:
-20 dB, minimum
Noise Figure:
1.5 dB, maximum
Gain:
26 dB
DC Power Requirements:
3 VDC — 5 VDC
Temperature:
-40°C to 85°C
